DS Instruments - RF Signal Sources, Attenuators, Switches, Phase Shifters, Mixers & Test Systems

DS Instruments design and manufacture unique RF Test Equipment including Signal Generators, Digital Attenuators, Mixers, RF Switches, Tracking Generators, Phase Shifters and Frequency Counters. The products are compact, affordable and reliable, making them attractive to engineers and technicians in aerospace, education, military, communications, and laboratories. The instruments are completely powered by and controllable via USB with a PC GUI, automated SCPI COM port commands, and front panel push-buttons making them some of the most flexible devices on the market. Custom applications can also be written using the Windows .NET environment. All the products are designed and made in Nevada, USA.

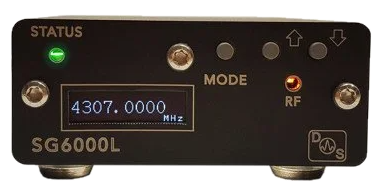

SG600L
RF Signal Generator

Stand-alone and USB remote operation

Adjustable output power (Step & Variable)

Industry-standard SCPI command support

Internal ±2.5PPM TCXO 10MHz reference

Front user frequency step buttons

Frequency-sweeping support

Front-mounted bright OLED display

Sturdy black all-aluminum enclosure

Simple Windows control GUI

Powered from standard micro-USB like a smartphone

Easy interface to software packages (Matlab, Python, Android, Linux, IOS…)

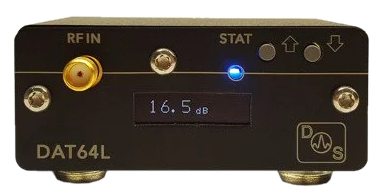

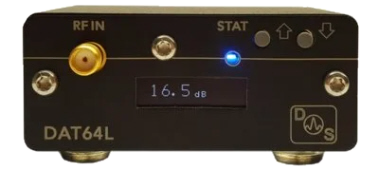

Digital Attenuators
DAT64L & DAT64H

Stand-alone and USB remote operation

Max input power: +25.0dBm

Attenuation: 0-63dB

Step Size: 0.5dB

DAT64L Frequency: 1MHz - 6GHz

DAT64H Frequency: 100MHz - 12GHz

SCPI command support via USB COM port

Front buttons and convenient OLED display

Power: 5v standard USB

Standard SMA RF connectors

Dimensions: 2.75″ x 1.24″ x 2″

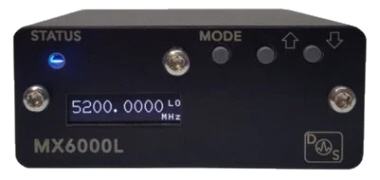

MX6000L Hybrid Mixer
& Local Oscillator

RF Mixer Features

Micro-USB powered from Laptop, battery-pack, Smartphone Charger, PC...

Compact, Rugged All-Metal Enclosure

Bright and efficient OLED display

Simple and effective control interface

Industry standard Virtual COM Port serial commands

50 Ohm gold SMA ports

Internal ±2.5ppm LO reference frequency

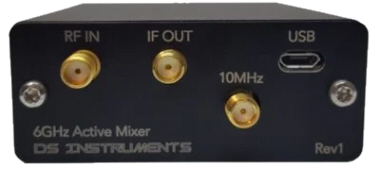

MX6000L
Rear Panel

RF Downconverter Specs

Integrated 25 - 6000 MHz programmable local oscillator

IF output range: LF to 600 MHz

RF input range: 10 - 6000 MHz

High RF input P1dB > +12 dBm

Low LO leakage: < -30 dB typical

LO phase noise at 6GHz < 72 dBc

Very low conversion loss

Return loss > 10 dB

Typical noise figure: 9.75 dB

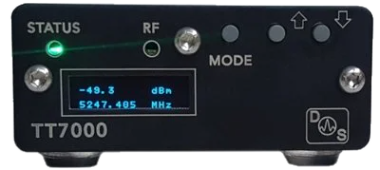

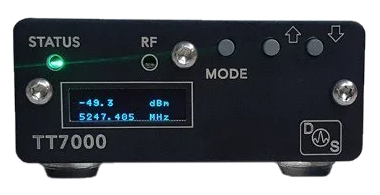

TT7000 RF Power Meter,
Counter & Signal Generator

Device Modes

Calibrated Power Meter (-50 to +5 dBm) (100MHz - 7GHz)

RF Frequency Counter (100MHz - 7GHz)

RF Signal Generator (300MHz - 9600MHz) (10Hz Step)

High-power RF Divider (1X, 2X, 4X, 8X)

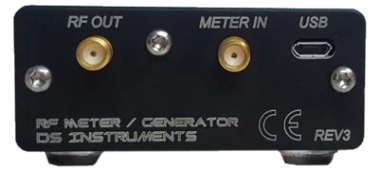

TT7000
Rear Panel

TT7000 Features

Crisp OLED Front Display

Front control buttons & status LEDs

USB powered and virtual COM port SCPI control

All-Aluminum black compact enclosure (2.75″ wide)

Internal precision 10MHz +/-280PPB reference frequency

Automatic power meter calibration using internal RF frequency counter

Adjustable power output in 0.5dB steps

Premium 18GHz microwave SMA jacks

Very low signal generator phase noise

The Standard Commands for Programmable Instruments (SCPI; often pronounced “skippy”) defines a standard for syntax and commands to use in controlling programmable test and measurement devices. DS Instruments products make use of SCPI commands OR front panel push buttons to control their functions.

Each of the DS Instruments products has a software application that can be freely downloaded. The software is based on the Microsoft .NET environment for running on Windows platforms. Many users 'roll their own' software using Microsoft Visual Basic from an Office application such as Excel.

By using SCPI commands over USB it possible to control the instruments from virtually any USB enabled computer.

DS Instruments has a number of instructive videos on their YouTube channel. DS Instruments Channel

The Standard Commands for Programmable Instruments (SCPI; often pronounced “skippy”) defines a standard for syntax and commands to use in controlling programmable test and measurement devices. DS Instruments products make use of SCPI commands OR front panel push buttons to control their functions.

Each of the DS Instruments products has a software application that can be freely downloaded. The software is based on the Microsoft .NET environment for running on Windows platforms. Many users 'roll their own' software using Microsoft Visual Basic from an Office application such as Excel.

By using SCPI commands over USB it possible to control the instruments from virtually any USB enabled computer.

DS Instruments has a number of instructive videos on their YouTube channel. DS Instruments Channel
